Scanners, Phosphor Plate | Dürr VistaScan Mini Series
VistaScan Image plate technology - the medium for all formats
The development of the VistaScan has allowed the advantages of the image plate technology such as exposure time, high grey scale range, high local resolution and low radiation dose to be fully exploited and makes this technology even more attractive compared to other sensor technologies.
Cost-effective and eco-friendly
The image plates can be exposed and deleted again several 100 times. No developer chemicals are required, thus eliminating stocking and disposal.
Advantages of image plates:
- As flexible and thin as a film for simple positioning
- Conventional holder systems
- Cable-free system
- All standard formats
- Broader exposure time frame
- Wide grey scale range
- 1 system for the whole surgery
- In most cases the existing X-ray system can continue to be used
Disadvantages of CCD/CMOS sensor:
- Rigid and relatively thick, thus limited positioning possibilities
- Special holder systems are necessary
- Cable connection
- Only limited range of formats
- Narrow exposure time frame and grey scale range
- Higher costs for multi-station systems
There are three modals and price-points so call us to discuss what would work for you and your budget.

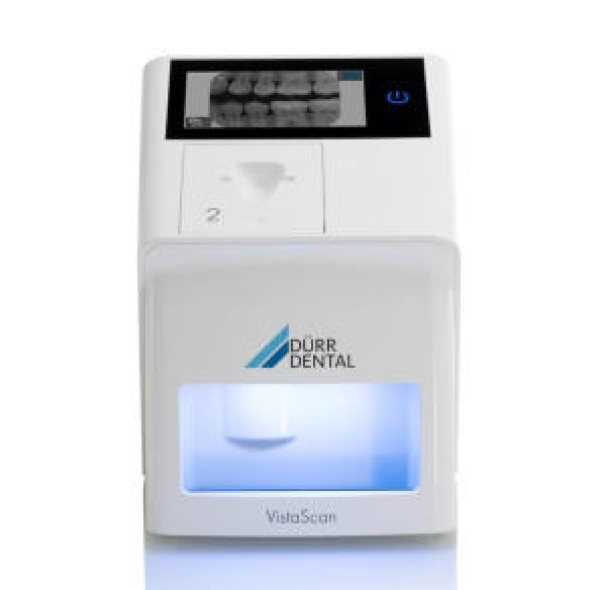

VistaScan mini view
The image plate scanner with a touchscreen for intraoral formats, the VistaScan Mini View image plate scanner enables the intuitive, efficient, and time-saving digitisation of image plates. Amongst other things, its large touchscreen with its easy-to-use user interface contributes to this. Its compact size and integrated wireless functions make the device really flexible.
Features:
- TOP IMAGE QUALITY
- HIGH-RESOLUTION TOUCHSCREEN
- SCANMANAGER FOR OPTIMUM WORKFLOW
- FOR ALL INTRAORAL FORMATS
- RELIABILITY THANKS TO INTERNAL MEMORY
- PC CONNECTION VIA WLAN/LAN
- STANDALONE MODE POSSIBLE
Convenient touchscreen
The 4,3“ high resolution touchscreen can display 16.7 million colours. It provides excellent image quality. The preview function for the scanned image allows X-ray results to be quickly checked.
Excellent image quality
Thanks to PCS technology, the VistaScan Mini View can reliably depict D1 caries lesions and endo instruments up to ISO 06. You can use all intraoral image plate formats with the VistaScan Mini View - from size 0 to size 4. The process is as easy as for analogue film.
Wi-Fi functionality
The integrated wireless functionality allows the VistaScan Mini View to be easily integrated into an existing network and placed almost anywhere you want, e.g. right next to a treatment chair. Naturally, there is also a LAN interface
Standalone mode
The VistaScan Mini View can also work independently, e.g. if the IT network goes down, you can still scan and save X-ray images. The images are temporarily placed in the internal memory and are later transferred to the database. It is also ideally suited for use as a mobile solution, e.g. when visiting care homes for the elderly
VistaScan mini plus
The grey scale graduation of the image plate with VistaScan Mini permits a presentation commensurate with the quality of the plate. With the proven engineering and outstanding image quality characteristic of Dürr Dental image plate scanners worldwide. X-ray and scanning directly at the chairside with full flexibility in the image formats. The re-usable VistaScan image plates are read out in top quality within seconds.There's never been a better time to change over to plates.
No compromises on image quality
Thanks to PCS technology, VistaScan Mini can reliably resolve caries D1 lesions and endoinstruments down to ISO 06. With 22 LP/mm, 16-bit (65.536) grey scales.
Highest image quality, perfect presentation
With a detail recognition of 22 LP/mm, VistaScan image plates have a higher resolution than the X-ray film and exceed that of any competitors. The Photon Collecting System (PCS) from Dürr Dental is already ahead of current image plate developments.In diagnostics you are well-prepared for the future with this compact solution. The DBSWIN imaging software displays the results in brilliant quality and allows ergonomic working procedures. The VistaScan Mini can be operated with most standard dental imaging software packages.
Faster and more reliable diagnostics
Changeover from X-ray film to "digital" image plate? There's nothing easier than that. the X-ray exposure procedure remains the same as before. However, the diagnostic reliability is increased thanks to optimum detail recognition and sophisticated software support. With the VistaScan Mini you can benefit from all the advantages of the Dürr Dental image plate technology in its most compact form. The thin, flexible image plates are more pleasant for the patient and are particularly durable thanks to their special coating.
No compromises on flexibility
All intraoral image plates – from size 0 to 4 – can be used with VistaScan Mini. In addition, 100% active surface area is available. Simple handling – as with an analog film.
VistaScan mini easy
Compact and easy
The VistaScan Mini Easy image plate scanner makes image plate diagnostics even faster for dentists. The compact device is particularly easy to use and requires a minimum of space – so that it can be installed in the treatment room. The advantage: X-ray and scanning directly at the chairside. The reusable VistaScan image plates are read out in top quality within seconds. There has never been a better time to change over to image plates.
Key features:
- EXCELLENT IMAGE QUALITY
- RAPID IMAGE AVAILABILITY
- IDEAL CHAIRSIDE APPLIANCE
- PC INTERFACE VIA USB OR NETWORK
High resolution images
With low noise, supports a reliable diagnosis.
Common sizes
Image plates size 0 and size 2 can be used with VistaScan Mini Easy. In addition, 100 % active surface area is available. Simple handling – just like with an analogue film
Easy handling
Particularly easy handling: Read out, erase and make ready for the next use in one step. Rapid image availability from 6 seconds in the direct vicinity of the patient
